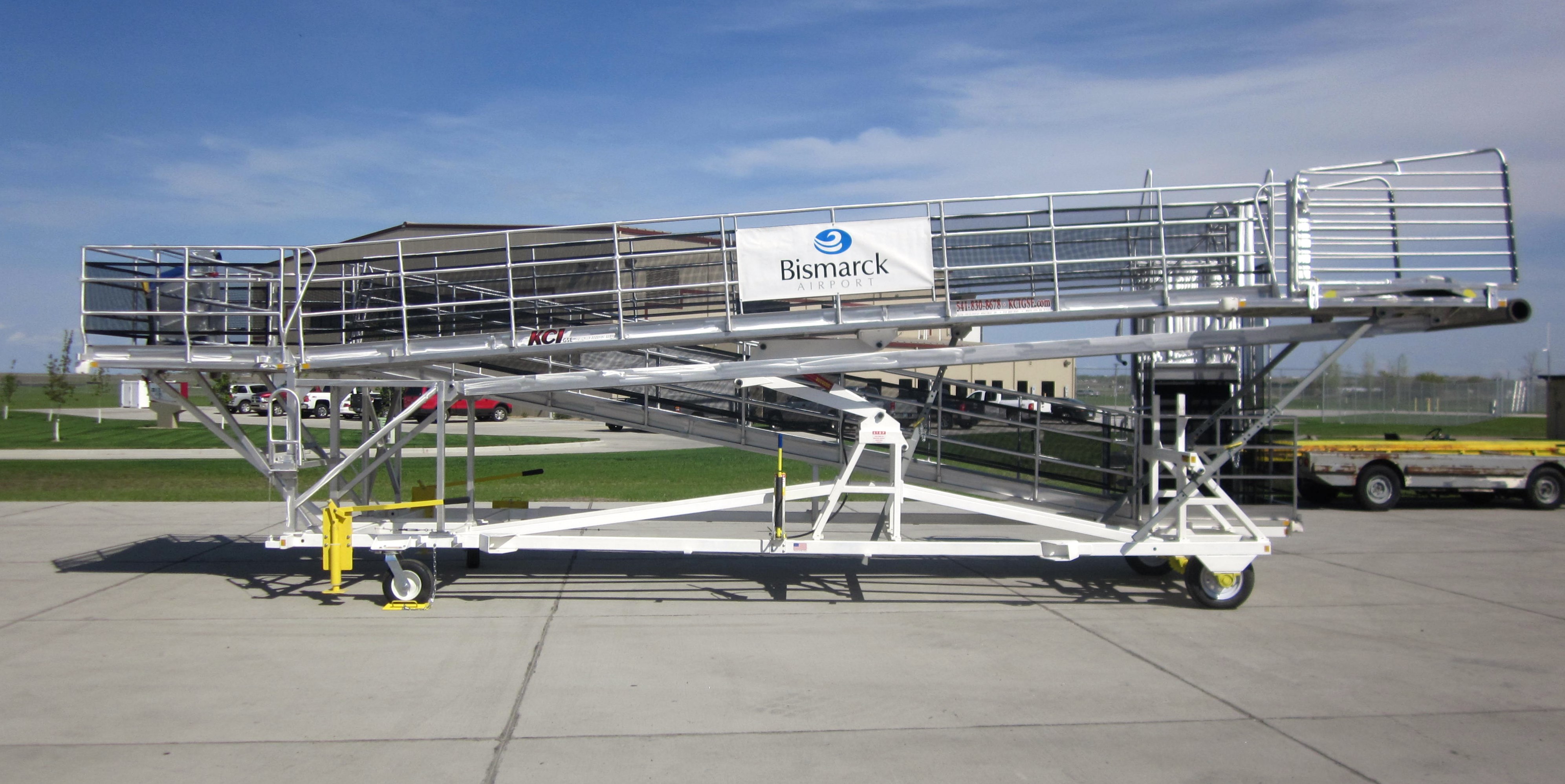

DAQ-ML 200-320 Passenger Ramps

027

Save

The DAQ-ML 200-320 services the following aircraft: CRJ 200, ERJ 135/145, CRJ 700/900, EMB  170/175  717/MD-80, 737, 737 MAX, A 319/320

Other aircraft ranges are available, call or email for details!

The DAQ-ML 200-320 ramp allows for a seamless boarding process for all aircraft from the CRJ 200 up to the A-319/320. this ramp, with its adjustable slope and platform with sliding gates, provides for a faster, safer and more economical means of boarding and deplaning. For use with the CRJ 700/900 and smaller aircraft, a Mobile Bride Adapter is required. The DAQ-ML 200-320 ramp has an extended turn deck to allow for storage of the adapter  and is gated to prevent access to the adapter by the passengers. The DAQ-ML 200-320 ramp is comfortably sloped, non motorized and easy to operate.

Length: 35 feet
Height: 118″ stowed
Width: 119 1/2″
Weight: Ramp, No Canopy: 2,479 lbs.  Ramp with Canopy: 2,899 lbs.
Wheels: All pneumatic, industrial polyurethane filled
Brake: Dead Man style
Provided Accessories:  Tow Bar, Wheel Chocks, Transition Plate, Mobile Bridge Adapter
Canopy: Optional and includes outriggers built onto the frame.
Range: 71″ to 133″
FAA Requirements: Meets or exceeds all requirements as stated in A/C No: 150/5220-21C
Aircraft Locator Rod: Provided
Surface: 36″ wide, slip-resistant surface
Wind Standards: Meets 90 MPH FAA requirement when stowed
Warranty: 2-year warranty on manufacturing and material defects. 5 Year warranty on Safegaurd walking surface.
