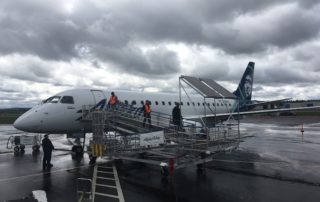

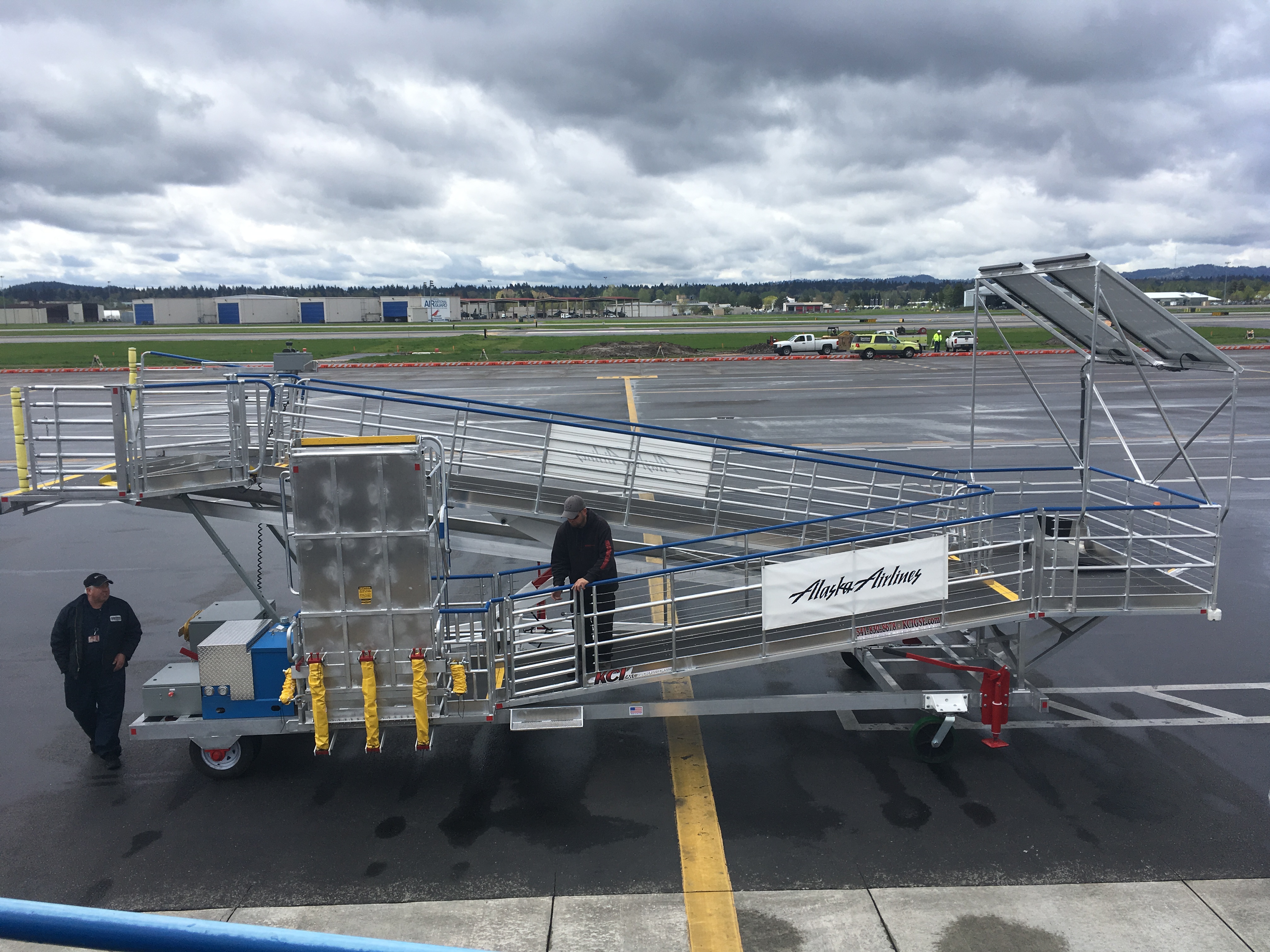

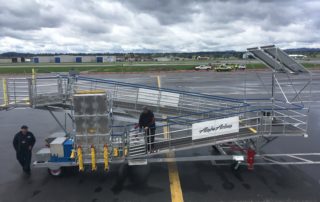

Electric-Hydraulic BAR Passenger Ramps

Electric-Hydraulic BAR Passenger Ramps

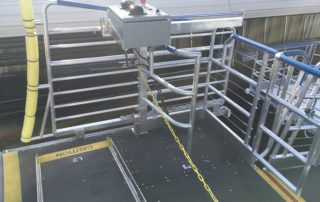

The Electric-Hydraulic BAR passenger Ramp features an on-board hydraulic system powered by a 5HP, 24v electric motor. With the push of a button the height of the ramp can be adjusted to the desired aircraft setting in a matter of seconds. The drive controls are positioned to offer maximum visibility to the operator when approaching the aircraft and allow for finite adjustments to achieve optimal positioning to the aircraft door.  The Electric-Hydraulic BAR is easily charged using the on-board shore power cord in a standard 110v outlet or the optional solar or diesel generator charging systems. Upgrading to the optional lithium-ion batteries provides even more turns per charge as well as an expanded battery life. The Electric-Hydraulic BAR has been designed to be sturdy and rugged with only the most basic preventative maintenance required. In the event of a systems malfunction, the patented drive gears can be disengaged for manual operation, ensuring this ramp is operational ready at all times.

Length: Varies based on specific customer needs.
Height: Varies based on specific customer needs.
Width: Varies based on specific customer needs.
Weight: Varies based on specific customer needs.
Wheels: 22″ pneumatic, industrial polyurethane filled and polyurethane on cast iron.
Brake: Dead Man style.
Also Provided: Tow Bar, Transition Plate
Available options: Solar OR Diesel generator charging, Lithium-Ion Batteries, Canopy
Range: Varies based on specific customer needs.
FAA Requirements Meets or exceeds all requirements as stated in A/C No:150/5220-21C.
Surface: 36′ wide, Safeguard slip-resistant surface.
Wind Standards: Meets 90 MPH FAA requirement when stowed.
Warranty: 2-year warranty on manufacturing and material defects, 1-year warranty on electrical and hydraulic components, 5 year warranty on Safeguard.
