BAR 33 Passenger Ramp |
 |
For larger aircraft including MD80, DC-9, 737, A319 and A320, deployable in less than 1 minute.
| Length: | 33 feet; 35 feet w/ canopy |
| Height: | 127″ to 134″ Stowed |
| Width: | 119 1/2″ |
| Weight: | 30x series aluminum frame: 3,204 pounds20x series steel frame w/ canopy option: 3,754 pounds |
| Wheels: | All pneumatic, industrial polyurethane filled |
| Brake: | Dead Man style |
| Provided Accessories Include: | Tow Bar, Wheel Chocks, Transition Plate |
| Canopy: | Optional with capability to fit over fuselage of any aircraft in the above range |
| Options: | Side curtains are available but device must be secured in winds over 30 MPH |
| Range: | 80″ to 133″ -or- 90″ to 155″ |
| FAA Requirements | 19 degrees AC 150/5360-14, AC 150/5220-21B |
| Training: | On-site and included in price |
| Surface: | 36″ wide, slip-resistant surface |
| Wind Standards: | Meets 90 MPH FAA requirement when stowed |
| Warranty: | 2-year warranty on manufacturing and material defects |

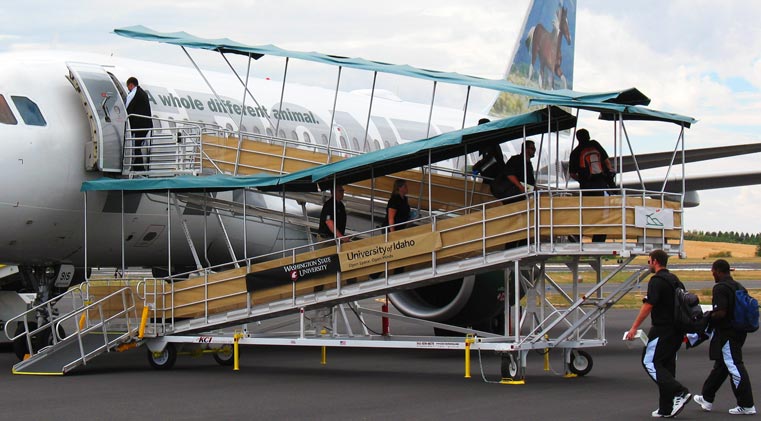

The KCI BAR33 ramps are a universal design built to serve larger sized aircraft, such as the MD80, up to the 757. The ramp allows for a seamless boarding process for all passengers. This ramp, with its adjustable slope, and platform with sliding rails provides a faster, safer, and more economical means of boarding and deplaning. If you elect to purchase the canopy option, the unit will be equipped with an aluminum frame canopy, and canvas cover top. Canvas available in multiple colors to suit. Two to three man operation, or TUG required.
This ramp can be used on all aircraft ranging in height from the ERJ170/190 to the B757, or the MD80 to the A320
