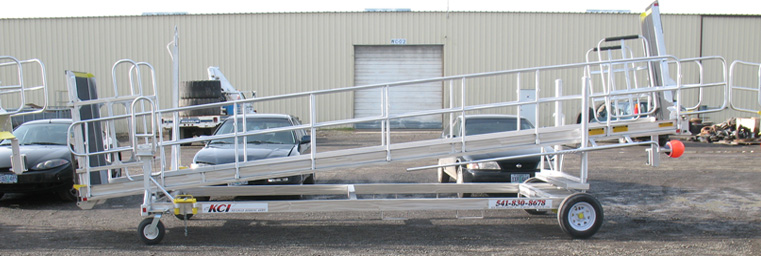

Express Ramp for all Regional Aircraft up to CRJ900
| Length: | 27 1/2 feet |
| Height: | 96″ stowed |
| Width: | 84″ |
| Weight: | 1,450 pounds (Aluminum frame w/o canopy) |
| Wheels: | All pneumatic, industrial polyurethane filled |
| Brake: | Dead Man style |
| Tow Bar: | Included |
| Chocks: | Included |
| Canopy: | Optional |
| Range: | Lowest setting 41″, highest setting 77″ |
| Degree of slope: | Dash 8 at 43″ – 7 degrees, CRJ at 77″ – 12 degrees |
| FAA Requirements | 19 degrees AC 150/5360-14, AC 150/5220-14B |
| Aircraft Locator Rod: | Provided |
| Training: | On-site and included in price |
| Surface: | 36″ wide slip-resistant surface |
| Wind Standards: | Meets 90 MPH FAA requirement when stowed |
| Warranty: | 2-year warranty on manufacturing and material defects |
The Express Ramp offers some of the same advantages as jetbridge boarding: a gentle slope into the aircraft, a place where a number of people can stand safely, and a safe dignified boarding process for passengers with mobility impairments, as well as those without. The Express Ramp is equipped with a manually operated “crank up” style lift for adjusting the height, rather than the hydraulically operated system found on the Turboway ramp.
•• Note: This ramp can be used on all known regional aircraft from a Metro to a CRJ900
