Custom Terminal Ramps

Length: Custom to your application.
Height: Custom to your application.
Width: Custom to your application.
Adjustable Gates: Provided
Transition Plate: A plate is provided to span the gap from the ramp to the terminal gate. It works like a dock plate. The plate is hinged to the ramp and lifted up when the ramp is not in use.
Tie Downs: Adjustable anchored feet
Lights: Optional: Lights are cold weather exterior T8 florescent, 110 volt. Light switch and 20′ extension cord with plug included.
Weight: Weight will vary depending on size, and application.
Wheels: All pneumatic, industrial foam filled, if applicable.
Brake: Dead Man style, if applicable
Tow Bar: Included if mobile.
Stabilizers: Custom to application.
Canopy: Optional, multiple colors available.
Side Curtains: Optional, multiple colors available.
Range: Custom to your application, although most terminal ramps are set at a fixed height.
FAA Requirements: Meets or exceeds all requirements as stated in A/C No: 150/5220-21C
Walking Surface: 36 or 48″ wide, slip-resistant surface
Walking Dimensions: The ramp sections are 36 or 48″ wide, and the mid platforms are 4′ 6″ wide x 9’2″ long
Wind Standards: Meets 90 MPH FAA requirement.
Warranty: 2-year warranty on manufacturing (see details below)

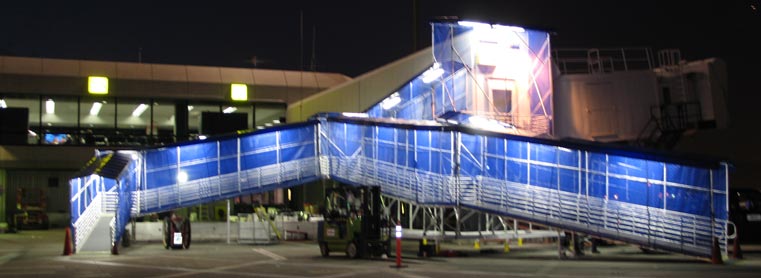

Custom terminal ramps built to suit! Our capabilities are second to none when it comes to getting your passengers safely to the ground. Our custom terminal ramps can be used as a temporary solution during airport improvement construction, or as a permanent fix. Available in multiple configurations, sizes, and color options. Optional lighting makes ramp usable at night, or in unfavorable weather.
