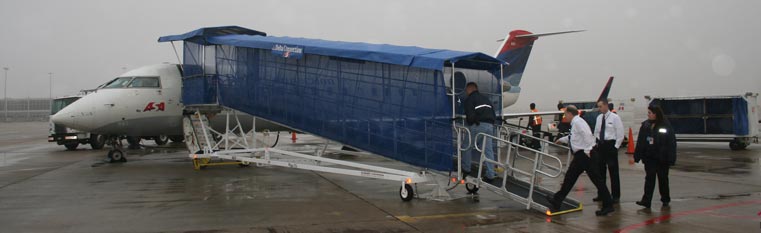

SGR 2035 Wing Swing Fixed Ramp


The SGR Wingswing fixed ramp is designed for a “drive in – drive out” situation, for the fastest possible turn time! This style ramp is generally used for prop driven aircraft. Because of the length of the upper bridge, the ramp can be set at the CRJ700/900 height and used on the lower height of the 200 as well as the ERJ 135/145 without changing settings. Not only does this decrease the time to deploy, it eliminates any need for hydraulic pumps or cylinders. The only maintenance would be periodic lubrication of the wheel bearings and upper bridge shaft.

Length: 35 feet
Height: 114″ @ 76.5″ fixed walking surface height
Width: 96″
Upper Platform: 6′ x 6′ and can handle full size wheelchair
Upper Bridge: 24″ wide for CRJ use, 16″ wide for ERJ/CRJ use
Main Ramp: 36″ wide walking surface
Lower Bridge: 34″ wide walking surface
Weight: 2,350 pounds
Wheels: All pneumatic, industrial polyurethane filled
Brake: Dead Man style
Hydraulics: Optional, not required for ERJ/CRJ use
Includes: Ramp Pivot Plate
Canopy: Optional with capability to fit over fuselage of any aircraft
Options: Side curtains optional, will fit over entire unit, aircraft door and approach ramp
Range: Can set for CRJ 700 then use for 200,700 and 900 without further adjustments
FAA Requirements: Meets or exceeds all requirements as stated in A/C No: 150/5220-21C
Surface: 36″ wide, slip-resistant surface
Wind Standards: Meets 90 MPH FAA requirement when stowed
Warranty: 2-year warranty on manufacturing and material defects
