MBA-63 Bridge Adapters for Regional Aircraft
Looking for something custom?
Contact us, and we’ll build a ramp to fit your aircraft needs.
Jetbridges often do not interface with the growing population of regional aircraft, so airports and airlines share expensive structural modifications to make jetbridges compatible with regional fleets. The MBA is a portable adapter that fits inside the jetbridge and the aircraft door, making a perfect fit between a conventional jetbridge and the aircraft, at a far lower cost. Some mainline operators also choose the MBA to prevent damage to the aircraft caused by jetbridge contact. The MBA Bridge Adapter can be deployed in a matter of seconds and features a built-in tilt compensator to adjust for cross slope on the jetbridge, as well as automatic brakes which lock as soon as the operator releases the pull handles. Full instructions and a set-up position gauge is included with each unit.
MBA-63 Bridge Adapters for Regional Aircraft
MBA-63 Bridge Adapters for Regional Aircraft
Jetbridges often do not interface with the growing population of regional aircraft, so airports and airlines share expensive structural modifications to make jetbridges compatible with regional fleets. The MBA is a portable adapter that fits inside the jetbridge and the aircraft door, making a perfect fit between a conventional jetbridge and the aircraft, at a far lower cost. Some mainline operators also choose the MBA to prevent damage to the aircraft caused by jetbridge contact. The MBA Bridge Adapter can be deployed in a matter of seconds and features a built-in tilt compensator to adjust for cross slope on the jetbridge, as well as automatic brakes which lock as soon as the operator releases the pull handles. Full instructions and diagrams appear right on the adapter and a set-up position gauge is included with each unit.
MBA-63 Bridge Adapter
| Length: | 63″ |
| Height: | 39″ |
| Width: | 34″ back, 16″ front |
| Weight: | 92 lbs. with Safeguard anti-slip, 79 lbs. with std. adhesive anti-slip |
| Load Rating: | 1,000 pounds |
| Side Curtains: | 116″ long, 30″ wide |
| Storage Size: | 72″ long x 39.5″ high x 11″ wide |
| Warranty: | 2-year warranty on manufacturing and material defects |
| Compatible Aircraft: | ERJ 135/145 (both the plug style door and airstair style door with non folding handrails), BAe 146, CRJ, Dash 8, Q400, Donier 328, mainline aircraft |
MBA-63 L-SG
MBA-63L-SG

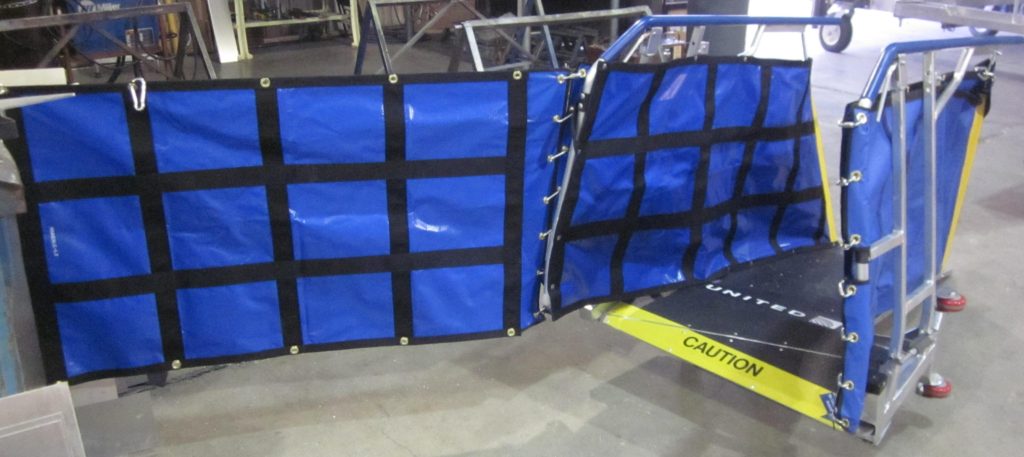

The MBA-63L-SG is a lighter weight version of our standard MBA-63 and utilizes a two piece safety curtain. The MBA-63L-SG comes standard with Safeguard anti-slip walking surface, far superior and longer lasting than any adhesive anti-slip available. The MBA-63L-SG is a portable, lightweight adapter that fits inside the jetbridge and the aircraft door, making a perfect fit between a conventional jetbridge and the aircraft. Some mainline operators also choose the MBA-63L-SG to prevent damage to the aircraft caused by jetbridge contact. The MBA-63-L-SG Bridge Adapter can be deployed in a matter of seconds and features a built-in tilt compensator to adjust for cross slope on the jetbridge, as well as automatic brakes which lock as soon as the operator releases the pull handles.
| Length: | 63″ |
| Height: | 39″ |
| Width: | 34″ back, 16″ front |
| Weight with primary curtain only: | 72 lbs |
| Weight with primary and secondary curtains: | 78 lbs |
| Load Rating: | 1,000 pounds |
| Side Curtains: | 116″ long, 30″ wide |
| Storage Size: | 72″ long x 39.5″ high x 11″ wide |
| Warranty: | 1-year warranty on manufacturing and material defects |
| Compatible Aircraft: | ERJ 135/145 (both the plug style door and airstair style door with non folding handrails), BAe 146, CRJ, Dash 8, Q400, Donier 328, mainline aircraft |
