Equipment Work Stands

APU Maintenance Stands
Equipment Scaffold
737 Combi Stand
737 Jack Screw Maint. Stand

APU Maintenance Stands

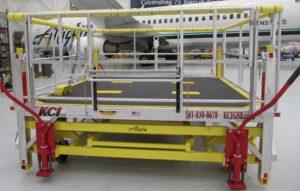

APU Stand Back

APU Maintenance Stand

The KCI APU Maintenance Stand is a key component used for installation and removal of the aircraft APU. The APU Stand has the ability to be operated by minimal personnel; one man operation for mechanically lifting or lowering the deck height. It’s removable gates allow it to be properly fitted under the tail of the aircraft during maintenance. The APU Stand has a 2000 lb. weight limit. Polyurethane tread wheels ensure easy maneuvering, but are made to withstand tough terrain if need be.

Equipment Scaffold

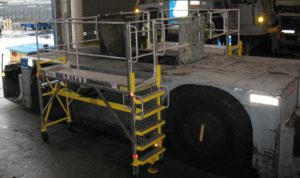

model ramp 026

Equipment Scaffold

The KCI built Equipment Scaffold is adjustable in height using a hand crank lift mechanism and provides mechanical lock pins so the scaffold can be locked at the desired height. The Equipment Scaffold is easily maneuverable and has a foot lock brake. The telescopic gates allow for added security and can be connected to a second unit to enclose the ground equipment being worked on.

737 Combi Stand

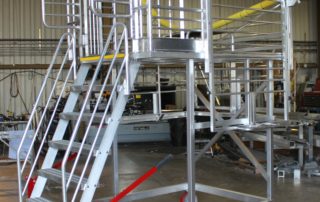

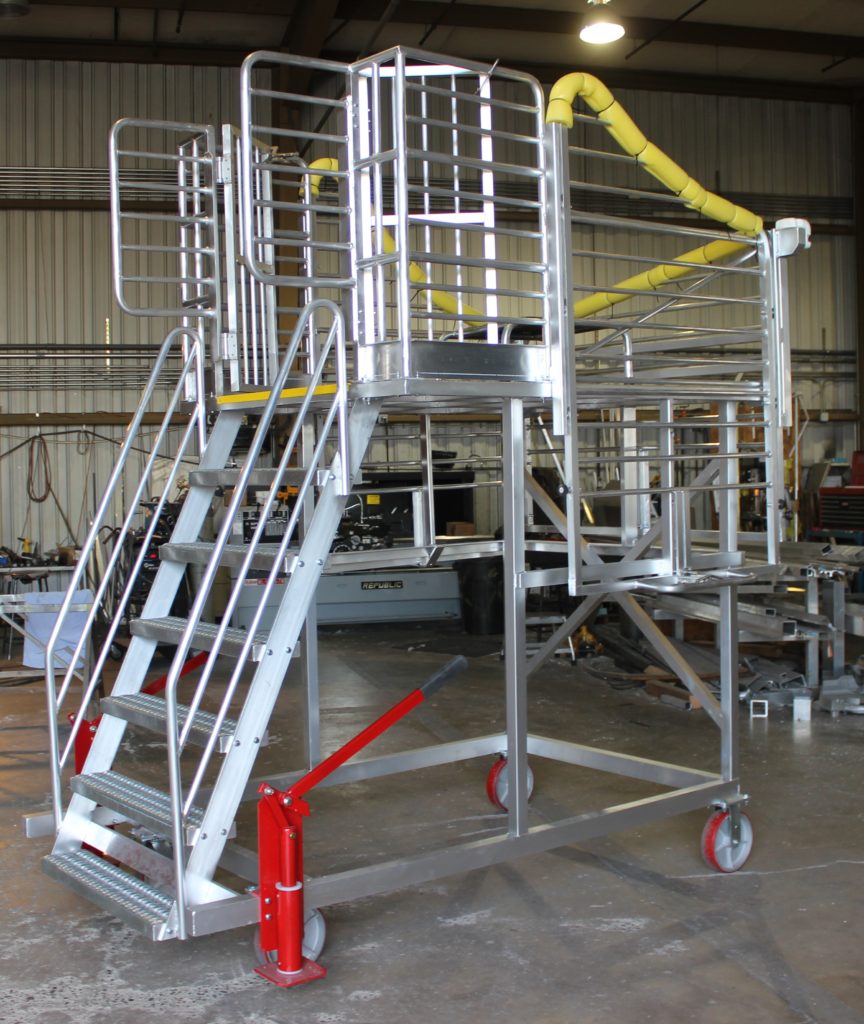

IMG_0964

737 Combi Stand

The 737 Combi Stand was developed to provide added platform area when working at the cargo door of the 737 Combi aircraft. The combi stand features Safeguard anti slip surfacing, mechanical stabilizing feet, all pneumatic industrial foam filled tires and can be deployed in less than one minute by trained personnel.

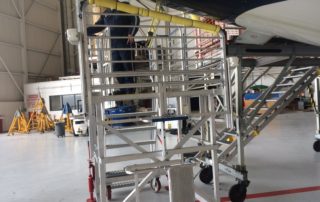

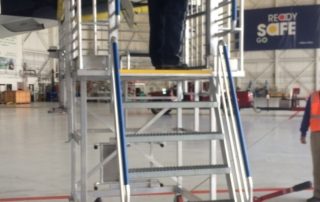

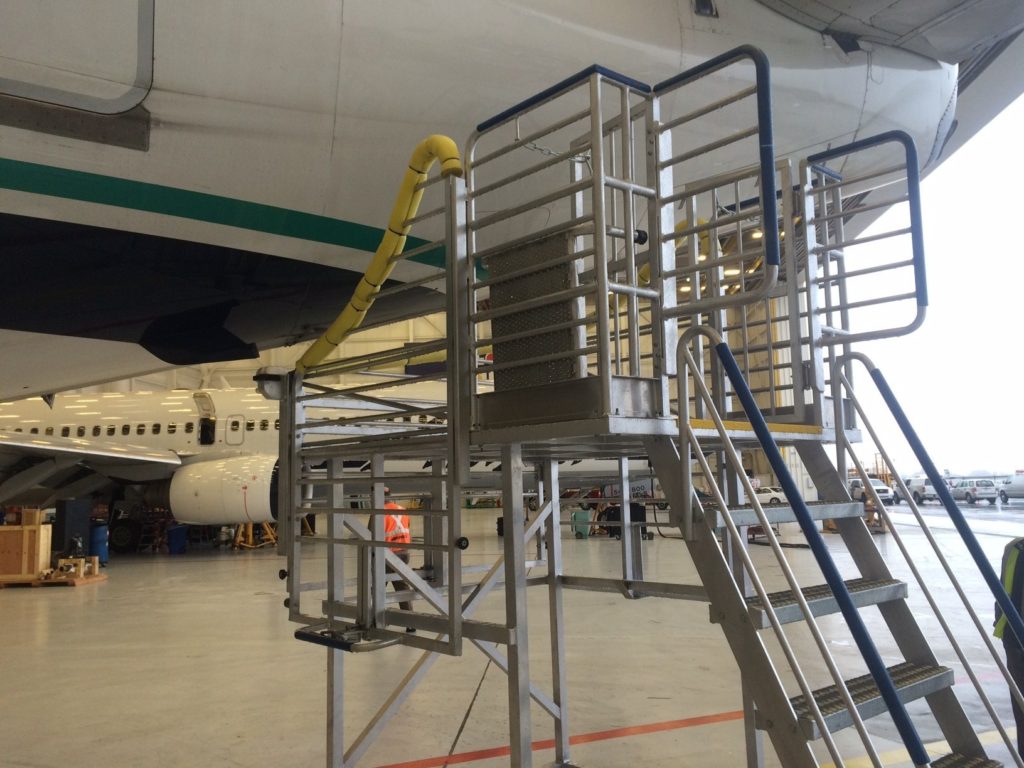

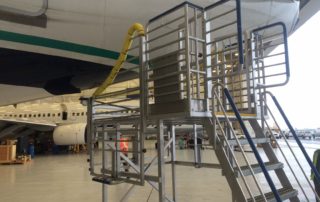

737 Jack Screw Stand

737 Jack Screw Stand

The 737 Jackscrew Maintenance ladder is designed to accommodate Ground crew access to the aft jackscrew access point of the 737 aircraft. The Jackscrew ladder is lightweight and easily maneuvered and deployed by one individual in less than 1 minute. Adjustable gates on all sides make using the Jackscrew Ladder simple and seamless.

Overall Length: 112″
Overall Height: 122″
Overall Width: 78″
Overall Weight: 700 pounds
Weight Capacity: 1,500 pounds
Warranty: 2-year warranty on manufacturing and material defects
